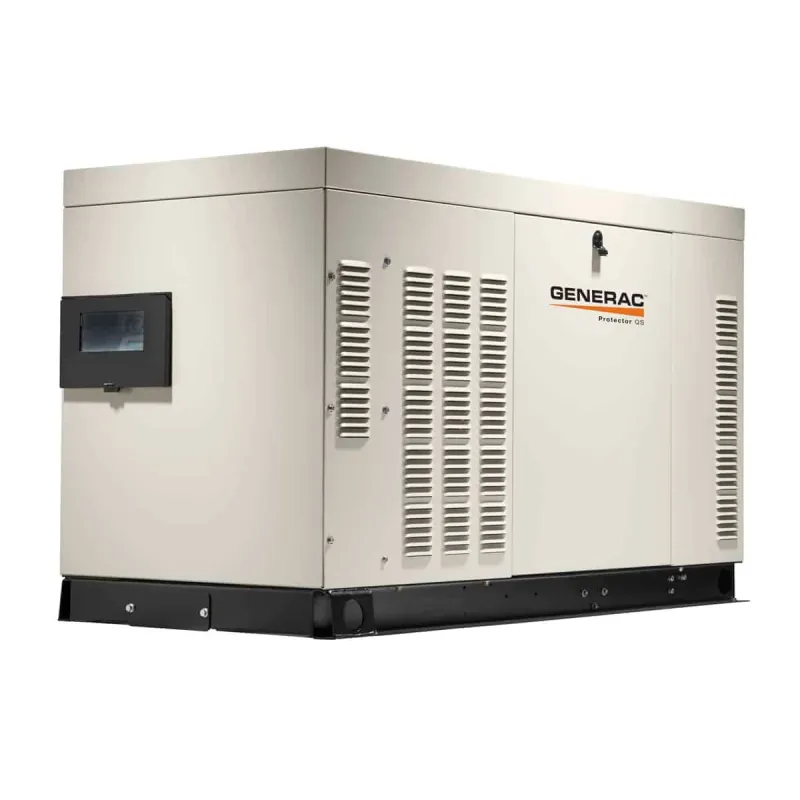

The Generac 30kW Protector Gas Standby Generator (Model RG03015ANAX) provides reliable automatic backup power for residential and commercial applications, delivering 30kW of rated power on both liquid propane and natural gas at 125 Amps and 120/240 Volts.
Powered by a 1.5-liter Generac engine operating at 3,600 RPM, the RG03015ANAX features a liquid-cooled cooling system, a 2-pole 4-wire alternator, and automatic voltage regulation. The generator includes low oil shutdown protection and a 150-Amp mainline breaker for integrated circuit protection.
Designed for outdoor standby installations, the generator features a durable aluminum enclosure and operates at 59 dBA in exercise mode and 72 dBA under normal load. The system is UL 2200 listed and includes a 5-Year Limited Warranty for consumer and commercial applications.
Key Features
- 30kW Standby Power (Natural Gas & Liquid Propane)
- Automatic Operation During Utility Outages
- Dual-Fuel Capability (Natural Gas or Liquid Propane)
- 1.5-Liter Generac Liquid-Cooled Engine (3,600 RPM)
- 125-Amp Power Output at 120/240V
- 5-Ton Air-Conditioning Load Capacity Rating
- Automatic Voltage Regulation
- Low Oil Shutdown Protection
- Integrated 150-Amp Mainline Circuit Breaker
- 2-Pole 4-Wire Alternator
- Aluminum Enclosure for Outdoor Standby Installation
- UL 2200 Listed Certification
- USA Engineered and Built
- Transfer Switch Sold Separately
- 5-Year Limited Warranty
Specifications
| Brand | Generac |
|---|---|
| Manufacturer | Generac Power Systems |
| Series | Protector Gas |
| Model | RG03015ANAX |
| MPN | RG03015ANAX |
| UPC | 696471617412 |
| Product Type | Standby Generator |
| Rated Power - LP | 30 kW |
| Rated Power - Natural Gas | 30 kW |
| Rated Current | 125 Amps |
| Voltage | 120/240 V |
| Frequency | 60 Hz |
| A/C Ton Rating | 5 Ton |
| Engine Brand | Generac |
| Engine Displacement | 1.5 Liter |
| Engine Speed | 3,600 RPM |
| Cooling System | Liquid Cooled |
| Fuel Type | Natural Gas or Liquid Propane |
| NG Consumption @ Full Load | 492 ft³/hr |
| NG Consumption @ Half Load | 320 ft³/hr |
| LP Consumption @ Full Load | 5.4 gal/hr |
| LP Consumption @ Half Load | 3.5 gal/hr |
| Alternator | 2-Pole, 4-Wire |
| Automatic Voltage Regulation | Yes |
| Sound Level | 59 dBA Exercise Mode / 72 dBA Normal Load |
| Starting System | Automatic Start |
| Low Oil Protection | Low Oil Shutdown |
| Mainline Breaker | 150 Amps |
| Enclosure | Aluminum |
| UL Listed | UL 2200 |
| USA Engineered and Built | Yes |
| Mounting Pad | Requires Prepared Site |
| Dimensions | 62.2 L × 30.6 W × 38.6 H in. |
| Weight | 807 lb. |
| Battery | 12-Volt Group 26, 525 CCA |
| Warranty | Generac 5-Year Limited Warranty |
Transfer Switch
| Transfer Switch Model | Sold Separately |
|---|
- Brand: Generac
- Product Code: RG03015ANAX
- Availability: In Stock
