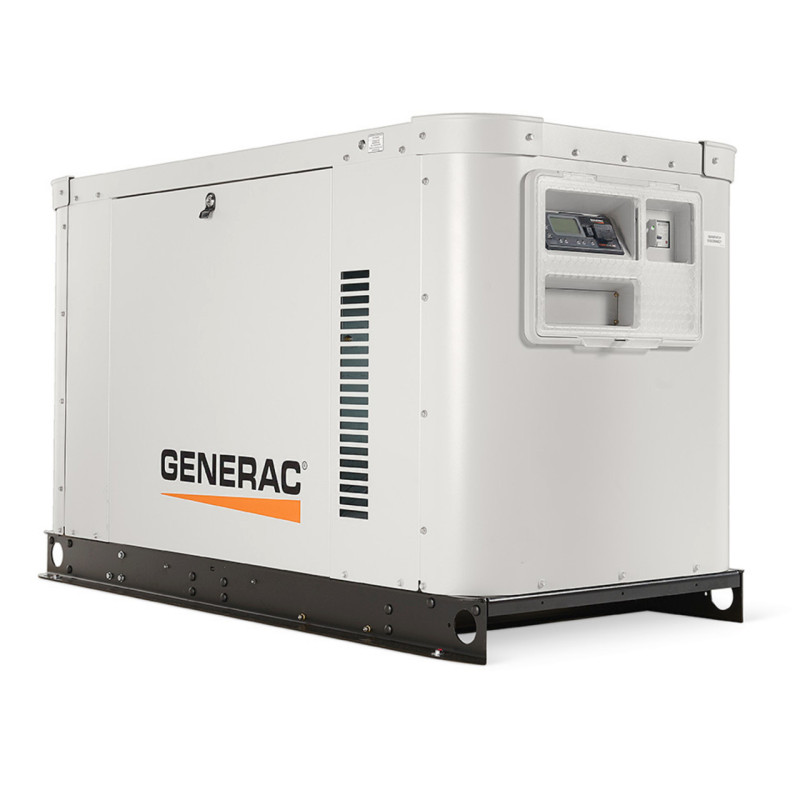

The Generac 30kW Light Commercial Protector XG Series 3-Phase Standby Generator (Model XG03025CNAX) provides reliable automatic backup power for small-to-medium commercial applications, delivering 30kW of rated continuous power on both natural gas and liquid propane.
Powered by a robust 2.5-liter Generac liquid-cooled engine running at a low-speed 1,800 RPM, this unit features a cast iron sleeve for enhanced durability, a synchronous self-excited 12-lead alternator, and automatic voltage regulation. The generator ensures efficient operation with low oil shutdown protection and utilizes the digital controller for overcurrent protection.
Engineered for outdoor commercial installations, the generator is housed in a heavy-duty, corrosion-resistant aluminum enclosure. It operates at an ultra-quiet 58 dBA in Quiet-Test / Low Idle mode and 64 dBA under normal load. The system is UL 2200 listed and backed by Generac's 5-Year / 2,000-Hour Limited Warranty.
Key Features
- 30kW Continuous Standby Power (Natural Gas & Liquid Propane)
- 3-Phase Configurable Voltage Output (208V / 240V / 480V)
- 2.5-Liter Generac Liquid-Cooled Engine with Cast Iron Sleeve
- 1,800 RPM Low-Speed Engine for Quiet & Long-Life Commercial Operation
- Synchronous Self-Excited 12-Lead Alternator
- Automatic Voltage Regulation
- Quiet-Test™ / Low Idle Self-Test Mode (58 dBA)
- Quiet 64 dBA Sound Rating Under Normal Load
- Dual-Fuel Capability (Natural Gas or Liquid Propane)
- Low Oil Shutdown Protection
- Corrosion-Resistant Aluminum Enclosure
- UL 2200 Listed Certification
- USA Engineered and Built
- Transfer Switch Sold Separately
- 5-Year / 2,000-Hour Limited Warranty
Specifications
| Brand | Generac |
|---|---|
| Manufacturer | Generac Power Systems |
| Series | Protector XG Series |
| Model | XG03025CNAX |
| MPN | XG03025CNAX |
| Product Type | Light Commercial Standby Generator |
| Rated Power - LP | 30 kW |
| Rated Power - Natural Gas | 30 kW |
| Phase | 3-Phase Configurable |
| Rated Current | 104 Amps @ 208V | 90 Amps @ 240V | 45 Amps @ 480V |
| Voltage | 3-Phase Configurable (208V / 240V / 480V) |
| Frequency | 60 Hz |
| A/C Ton Rating | 5 Ton |
| Engine Brand | Generac |
| Engine Displacement | 2.5 Liter |
| Engine Speed | 1,800 RPM |
| Cast Iron Sleeve | Yes |
| Cooling System | Liquid Cooled |
| Fuel Type | Natural Gas or Liquid Propane |
| NG Consumption @ Full Load | 452 ft³/hr |
| NG Consumption @ Half Load | 244 ft³/hr |
| LP Consumption @ Full Load | 2.6 gal/hr |
| LP Consumption @ Half Load | 1.2 gal/hr |
| Alternator | Synchronous Self-Excited 12-Lead |
| Automatic Voltage Regulation | Yes |
| Sound Level | 58 dBA Quiet Test / Low Idle | 64 dBA Normal Load |
| Starting System | Automatic Start |
| Low Oil Protection | Low Oil Shutdown |
| Mainline Breaker | Optional Accessory (Controller Provides Overcurrent Protection) |
| Enclosure | Aluminum |
| UL Listed | UL 2200 |
| USA Engineered and Built | Yes |
| Mounting Pad | Requires Prepared Site |
| Dimensions | 66.6 L × 32.6 W × 40.7 H in. |
| Weight | 1,120 lb. |
| Battery | Flooded Acid, 12-Volt, Group 26, 525 CCA |
| Warranty | Generac 5-Year / 2,000-Hour Limited Warranty |
Transfer Switch
| Transfer Switch Model | Sold Separately |
|---|
