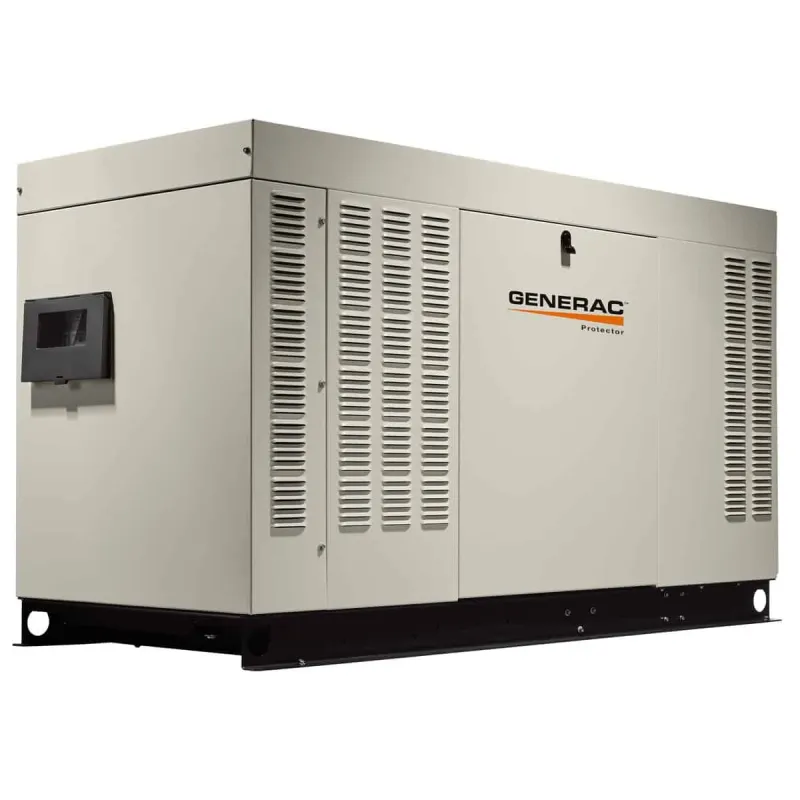

The Generac 25kW Protector Gas Standby Generator (Model RG02515ANAX) provides reliable automatic backup power for residential and commercial applications, delivering 25kW of rated power on both liquid propane and natural gas at 104 Amps and 120/240 Volts.
Powered by a 1.5-liter Generac engine operating at 3,600 RPM, the RG02515ANAX features a liquid-cooled cooling system, a 2-pole 4-wire alternator, and automatic voltage regulation. The generator includes low oil shutdown protection and an integrated hour meter for tracking operating hours.
Designed for outdoor standby installations, the generator features a durable aluminum enclosure and operates at 59 dBA in exercise mode and 71 dBA under normal load. The system is UL 2200 listed and includes a 5-Year Limited Warranty for consumer and commercial applications.
Key Features
- 25kW Standby Power (Natural Gas & Liquid Propane)
- Automatic Operation During Utility Outages
- Dual-Fuel Capability (Natural Gas or Liquid Propane)
- 1.5-Liter Generac Liquid-Cooled Engine (3,600 RPM)
- 104-Amp Power Output at 120/240V
- 5-Ton Air-Conditioning Load Capacity Rating
- Automatic Voltage Regulation
- Low Oil Shutdown Protection
- Integrated Hour Meter
- 2-Pole 4-Wire Alternator
- Aluminum Enclosure for Outdoor Standby Installation
- UL 2200 Listed Certification
- USA Engineered and Built
- Transfer Switch Sold Separately
- 5-Year Limited Warranty
Specifications
| Brand | Generac |
|---|---|
| Manufacturer | Generac Power Systems |
| Series | Protector Gas |
| Model | RG02515ANAX |
| MPN | RG02515ANAX |
| Product Type | Standby Generator |
| Rated Power - LP | 25 kW |
| Rated Power - Natural Gas | 25 kW |
| Rated Current | 104 Amps |
| Voltage | 120/240 V |
| Frequency | 60 Hz |
| A/C Ton Rating | 5 Ton |
| Engine Brand | Generac |
| Engine Displacement | 1.5 Liter |
| Engine Speed | 3,600 RPM |
| Cooling System | Liquid Cooled |
| Fuel Type | Natural Gas or Liquid Propane |
| NG Consumption @ Full Load | 430 ft³/hr |
| NG Consumption @ Half Load | 297 ft³/hr |
| LP Consumption @ Full Load | 4.7 gal/hr |
| LP Consumption @ Half Load | 3.3 gal/hr |
| Alternator | 2-Pole, 4-Wire |
| Automatic Voltage Regulation | Yes |
| Sound Level | 59 dBA Exercise Mode / 71 dBA Normal Load |
| Starting System | Automatic Start |
| Low Oil Protection | Low Oil Shutdown |
| Hour Meter | Yes |
| Enclosure | Aluminum |
| UL Listed | UL 2200 |
| USA Engineered and Built | Yes |
| Mounting Pad | Requires Prepared Site |
| Dimensions | 62.2 L × 30.6 W × 38.6 H in. |
| Weight | 865 lb. |
| Battery | 12-Volt Group 26, 525 CCA |
| Warranty | Generac 5-Year Limited Warranty |
Transfer Switch
| Transfer Switch Model | Sold Separately |
|---|
