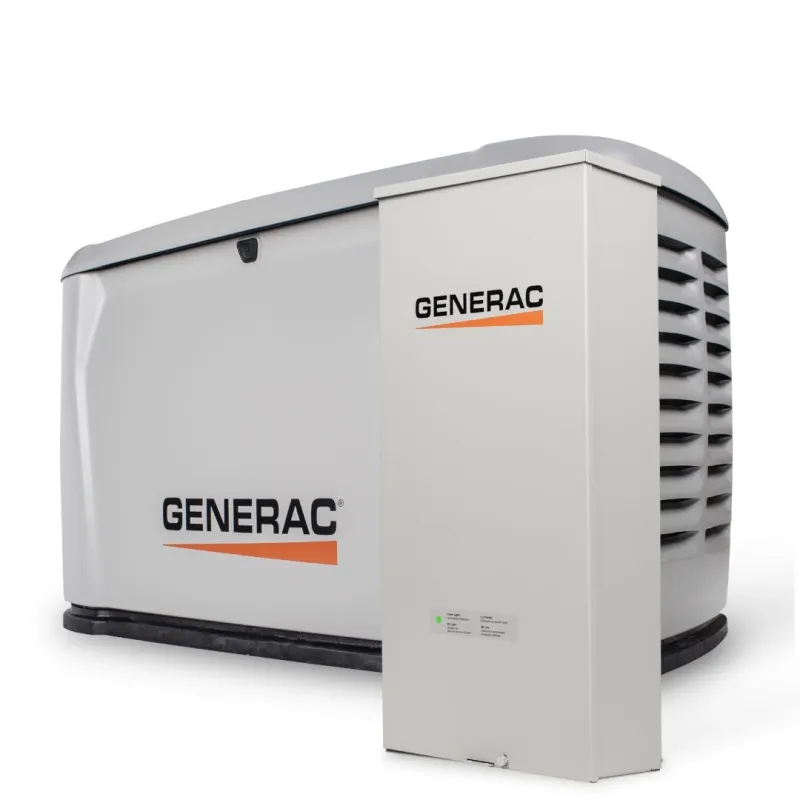

The Generac 24kW Next Gen Home Standby Generator (Model 7326) provides reliable automatic backup power for residential applications, delivering 24kW on liquid propane and 22.5kW on natural gas.
The system includes a 200-Amp Service Entrance Rated Automatic Transfer Switch and Generac's Power Zone 200 Controller for automatic power management and enhanced system control.
With cellular, Wi-Fi, Bluetooth, and Mobile Link connectivity, oil level monitoring, improved cold-weather starting, and a 5-Year Limited Warranty, the Generac 7326 is designed for dependable whole-home backup power.
Key Features
- 24kW Standby Power (Liquid Propane) & 22.5kW (Natural Gas)
- 200-Amp SE Rated Automatic Transfer Switch (Whole-Home Application)
- Power Zone 200 Controller
- Advanced Connectivity: Cellular, Wi-Fi, and Bluetooth
- Mobile Link Monitoring with Oil Level Tracking
- Improved Cold-Weather Starting Performance
- Electronic Fuel & Ignition Control
- Generac G-Force 1000 Engine (997cc V-Twin)
- Outdoor-Rated Aluminum Enclosure
- Automatic Operation On Utility Interruption
- Integrated Whole-Home Surge Protection
- 5-Year Limited Warranty
Specifications
| Model Number | 7326 |
|---|---|
| Manufacturer | Generac |
| Type | Home Standby Generator |
| Series Name | Next Gen |
| LP Power Capacity | 24 kW |
| NG Power Capacity | 22.5 kW |
| Rated Amps - LP | 100 Amps |
| Rated Amps - NG | 94 Amps |
| Voltage | 120/240 Volts |
| Phase | Single Phase |
| A/C Ton Rating | 5-Ton |
| Enclosure | Aluminum |
| UL Listed | UL 2200 |
| Decibel Rating | 67 dBA at Normal Load |
| Starting System | Automatic |
| Low Oil Alert | Low Oil Shutdown |
| Oil Level Monitoring | Via Mobile Link |
| Mainline Breaker | 100 Amps |
| Controller | Power Zone 200 |
| Connectivity | Cellular, Wi-Fi & Bluetooth |
| Mobile Monitoring | Mobile Link |
| Battery | 12-Volt AGM Group BTX20L, 310 CCA |
| Weight | 461 Pounds |
| Dimensions | 46.42 W × 26.3 D × 30.7 H inches |
| Consumer Warranty | Generac 5-Year Limited Warranty |
Engine
| Engine Brand | Generac G-Force 1000 |
|---|---|
| Engine Size | 997cc V-Twin |
| Engine RPM | 3,600 RPM |
| Cast Iron Sleeve | Yes |
| Cooling System | Air Cooled |
| Oil Capacity | 2.2 Quarts (2.1 Liters) |
Alternator
| Alternator Type | 2-Pole Revolving Field |
|---|---|
| Frequency | 60 Hertz |
| Automatic Voltage Regulation | Yes |
Fuel
| Fuel Type | Natural Gas or Liquid Propane |
|---|---|
| LP Power Capacity | 24 kW |
| NG Power Capacity | 22.5 kW |
| NG Consumption @ Half Load | 197 Cubic Feet per Hour |
| NG Consumption @ Full Load | 291 Cubic Feet per Hour |
| LP Consumption @ Half Load | 2.45 Gallons per Hour |
| LP Consumption @ Full Load | 3.71 Gallons per Hour |
Transfer
| Transfer Switch Amps | 200 Amps |
|---|---|
| Transfer Switch Type | Service Entrance Rated Automatic Transfer Switch |
| Transfer Switch Circuits | Whole House Switch |
| ATS Poles | 2 Poles |
| Voltage | 120/240 Volts AC |
| Phase | Single Phase |
| Enclosure | NEMA / UL 3R |
| Surge Protection | Integrated Whole-Home Surge Protection |
| Transfer Switch Weight | 39 Pounds |
