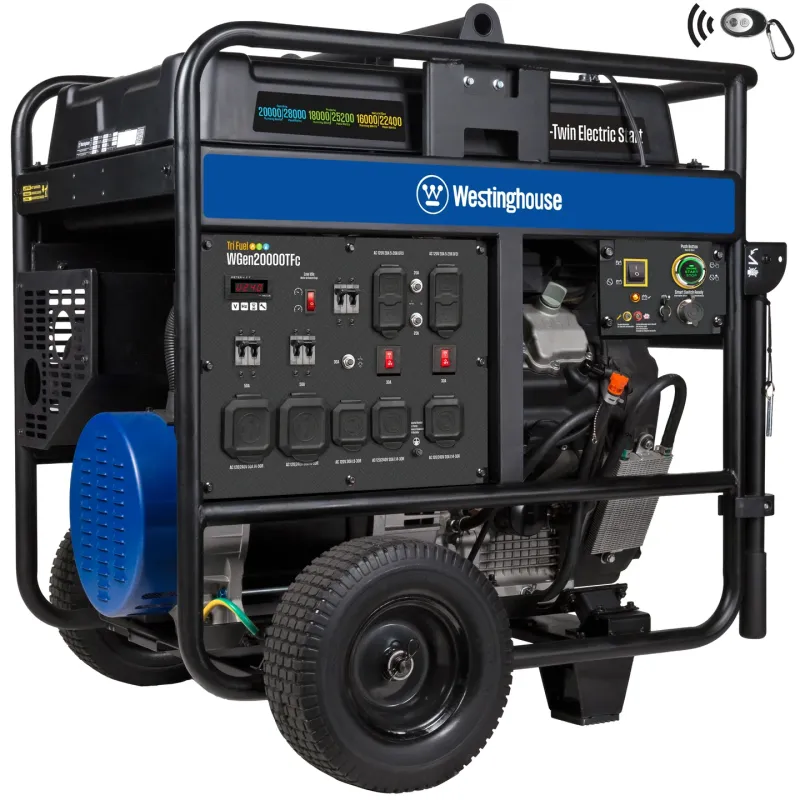

The Westinghouse WGen20000TFc Tri-Fuel Portable Generator delivers industrial-grade backup power with an integrated Carbon Monoxide (CO) Sensor for maximum safety. Engineered for ultimate versatility, it runs on gasoline, propane, or natural gas, producing up to 28,000 peak watts to manage complete home or job site electrical loads during grid failures.
Equipped with a powerful 999cc OHV 4-stroke engine and 100% copper windings, this unit ensures reliable continuous operation. It features an advanced electric and remote start system, low-noise performance at 74 dBA, and delivers clean, stable energy with less than 5% total harmonic distortion (THD) to safely power sensitive diagnostic equipment and modern home electronics.
Key Features
- Tri-Fuel Capability (Gasoline, Propane, Natural Gas)
- Carbon Monoxide (CO) Sensor Safety Shutdown
- 28,000 Peak Watts / 20,000 Running Watts on Gasoline
- Powerful 999cc OHV 4-Stroke Engine with Cast Iron Sleeve
- Clean Power Output (Less Than 5% THD)
- 100% Copper Windings for Maximum Durability
- Electric and Remote Start System

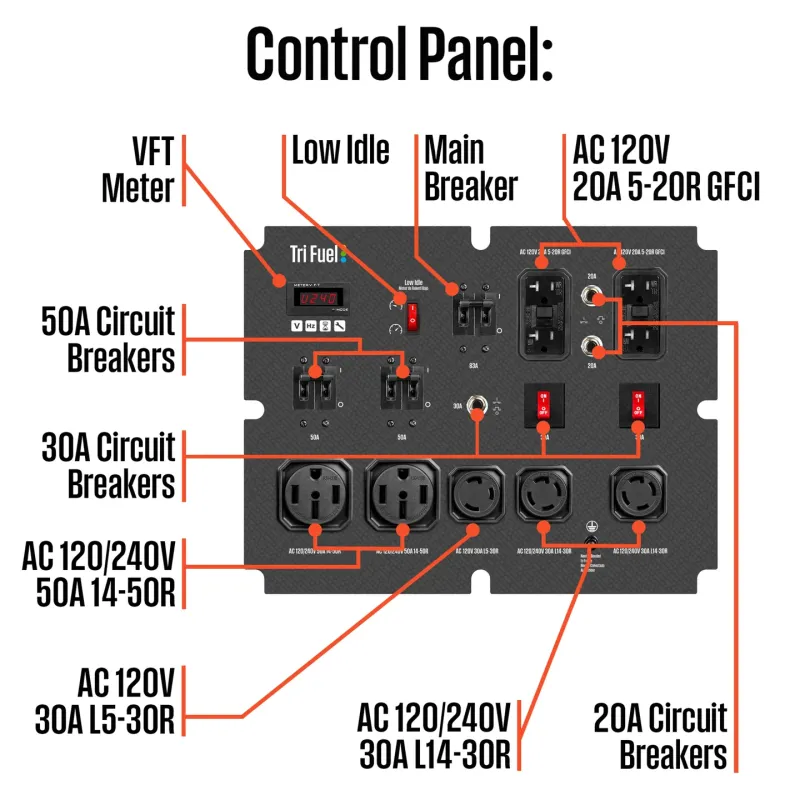

- VFT Digital Display & Low Idle Control
- High-Capacity 17.2 Gallon Fuel Tank with Gauge
- Transfer Switch and ST Switch Ready Configuration
- EPA Certified Performance
- 3-Year Limited Residential Warranty
Specifications
| Brand | Westinghouse |
|---|---|
| Model Number | WGen20000TFc |
| Part Number | 20027 |
| UPC | 850032657785 |
| Gasoline Power | 28,000 Peak Watts / 20,000 Running Watts |
| Propane Power | 25,200 Peak Watts / 18,000 Running Watts |
| Natural Gas Power | 22,400 Peak Watts / 16,000 Running Watts |
| Gasoline Amps | Peak: 116.7A - 240V / Running: 83.3A - 240V |
| Propane Amps | Peak: 105A - 240V / Running: 75A - 240V |
| Natural Gas Amps | Peak: 93.3A - 240V / Running: 66.7A - 240V |
| AC Voltage & Frequency | 120/240V @ 60 Hz (Single Phase) |
| Outlets | (2) GFCI 120V 5-20R, (2) L14-30R, (2) 14-50R, (1) L5-30R, (1) 125A 240V AC Terminal Block |
| Total Harmonic Distortion | Less Than 5% |
| Winding Material | 100% Copper |
| Engine Specs | 999cc OHV 4-Stroke with Cast Iron Sleeve |
| Starter Type | Electric, Remote (Choke: Automatic) |
| Fuel Tank Capacity | 17.2 gal. (65.1 L) with Fuel Gauge |
| Gasoline Run Time | 14 hrs @ 25% Load / 8 hrs @ 50% Load |
| Propane Run Time (20lb) | 3 hrs @ 25% Load / 5 hrs @ 50% Load |
| Oil Capacity & Type | 74.4 oz. (2.32 qt.) / 10W-30 |
| Safety Systems | CO Sensor, Low Oil Shutdown, Overload Protection |
| Certifications | EPA Certified (CARB Compliant: No) |
| Noise Level | As low as 74 dBA |
| Product Dimensions | 38L x 35W x 40.4H in. (Weight: 557 lb.) |
| Warranty | Residential: 3 Year Ltd / Commercial: 1 Year Ltd |
