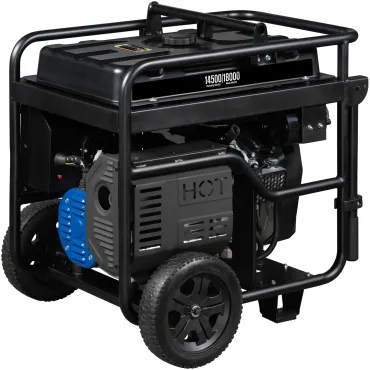

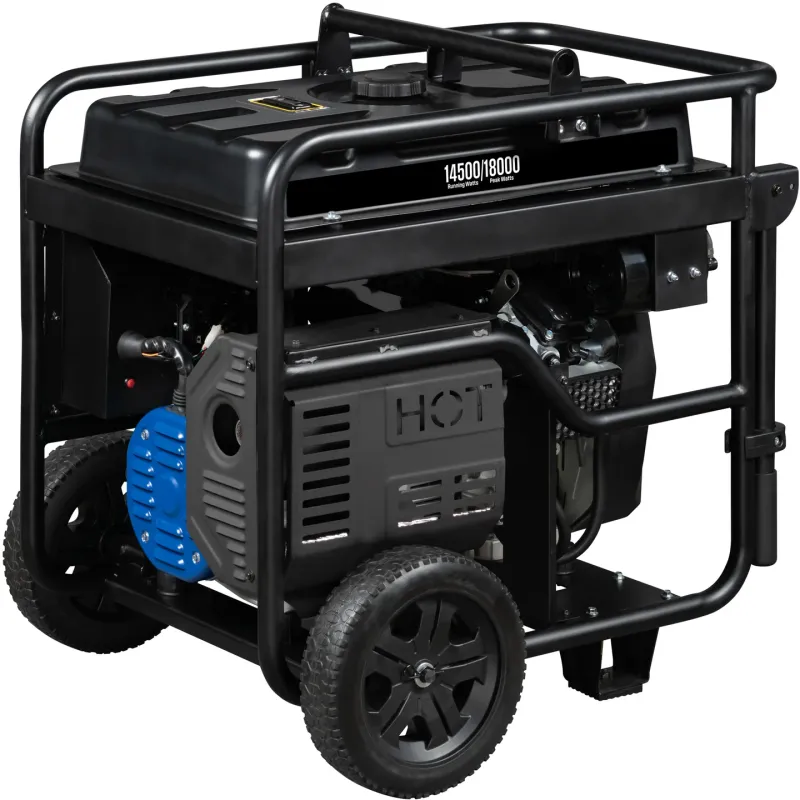

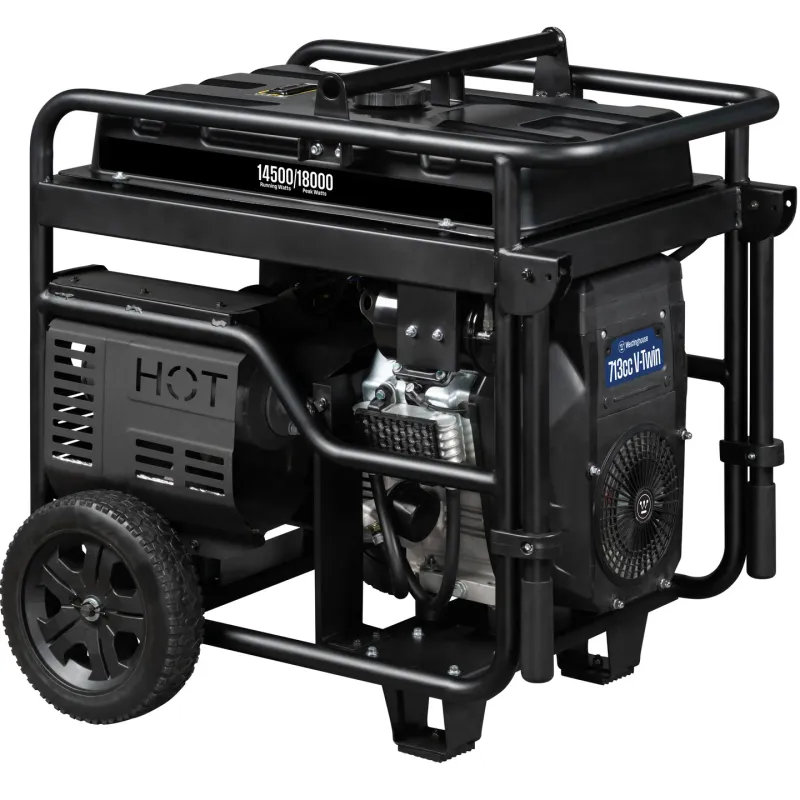

The Westinghouse WGen14500c Gasoline Portable Generator (Model 12021) delivers high-capacity emergency standby power engineered with an integrated Carbon Monoxide (CO) Sensor for advanced operational safety. Designed to comfortably sustain whole-property loads during critical grid failures, this high-performance system operates on gasoline to generate up to 18,000 peak watts and 14,500 running watts.
Powered by a robust 713cc Westinghouse OHV V-Twin engine built with a durable cast iron sleeve, the unit utilizes 100% copper windings for premium conductance reliability. It integrates a convenient remote start key fob with an electric push-button mechanism, features Smart Idle efficiency control at a low 74 dBA, and maintains less than 5% Total Harmonic Distortion (THD) for exceptionally clean power delivery.
Key Features
- 18,000 Peak Watts & 14,500 Running Watts (Gasoline Only)
- Advanced Carbon Monoxide (CO) Sensor Safety Shutdown
- Robust 713cc Westinghouse OHV V-Twin Engine with Cast Iron Sleeve
- Clean Sine Wave Energy Output (≤5% Total Harmonic Distortion)
- 100% Pure Copper Windings for Optimal Long-Term Conductivity

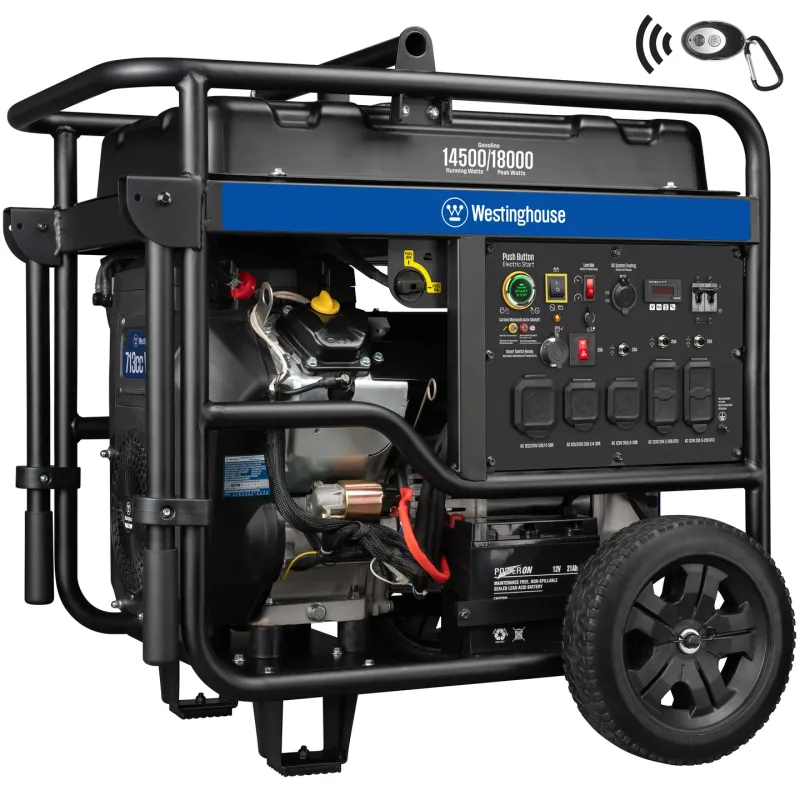

- Convenient Remote Key Fob and Electric Push-Button Start
- Smart Idle Speed Control & Digital VFT Monitor Center
- High-Capacity 10.5-Gallon Fuel Tank with Integrated Mechanical Gauge
- Transfer Switch (50A), ST Switch, and RV Ready Outlets with Covers
- Automatic Low Oil Shutdown & Comprehensive Overload Protection Systems
- Heavy-Duty 12-Inch Wheel Kit and Foldable Handling Infrastructure
- 3-Year Limited Residential Warranty
Specifications
| Brand | Westinghouse |
|---|---|
| Model Name | WGen14500c |
| Part Number | 12021 |
| UPC | 850011336915 |
| Fuel Type | Gasoline Only |
| Gasoline Output | 18,000 Peak Watts / 14,500 Running Watts |
| Gasoline Current (Amps) | Peak: 75A (240V), 150A (120V) / Running: 60.4A (240V), 120.8A (120V) |
| AC Voltage & Frequency | 120/240V @ 60 Hz |
| Receptacles / Outlets | (2) GFCI 120V 5-20R, (1) 120V 30A L5-30, (1) 120/240V 30A L14-30R, (1) 120/240V 50A 14-50R, (2) DC 5V USB |
| Total Harmonic Distortion | ≤5% (Clean Sine Wave) |
| Winding Material | Copper Windings |
| Engine Specifications | 713cc Westinghouse OHV V-Twin (3600 RPM / Low Idle ~2900) |
| Starter & Choke Type | Electric, Remote (Automatic Choke) |
| Fuel Tank Infrastructure | 10.5 gal (40 L) with Integrated Fuel Gauge |
| Gasoline Run Time | Up to 16 hrs @ 25% / Up to 9 hrs @ 50% |
| Oil Capacity & Type | 51.2 oz. (1.6 qt) / 10W-30 |
| System Safety Controls | Carbon Monoxide (CO) Sensor, Automatic Low Oil Shutdown, Overload Protection |
| Compliance Status | EPA Compliant (CARB Compliant: No) |
| Noise Level | As low as 74 dBA |
| Product Dimensions | 34L x 31W x 35H in. |
| Dry Unit Weight | 352 lb. (160 kg) |
| Packaging Dimensions | 35.4L x 24.4W x 33.5H in. |
| Shipping Weight | 403.4 lb. (183 kg) |
| Warranty Structure | Residential: 3 Year Limited / Commercial: 1 Year Limited |
