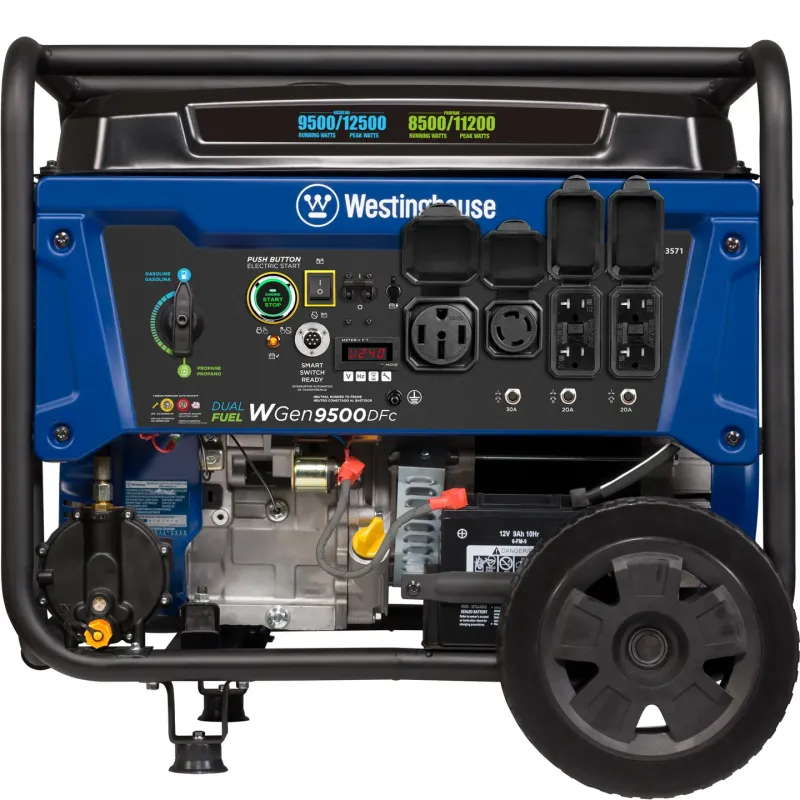

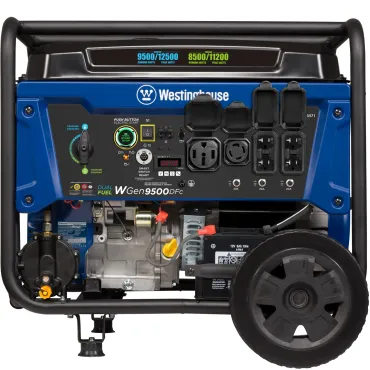

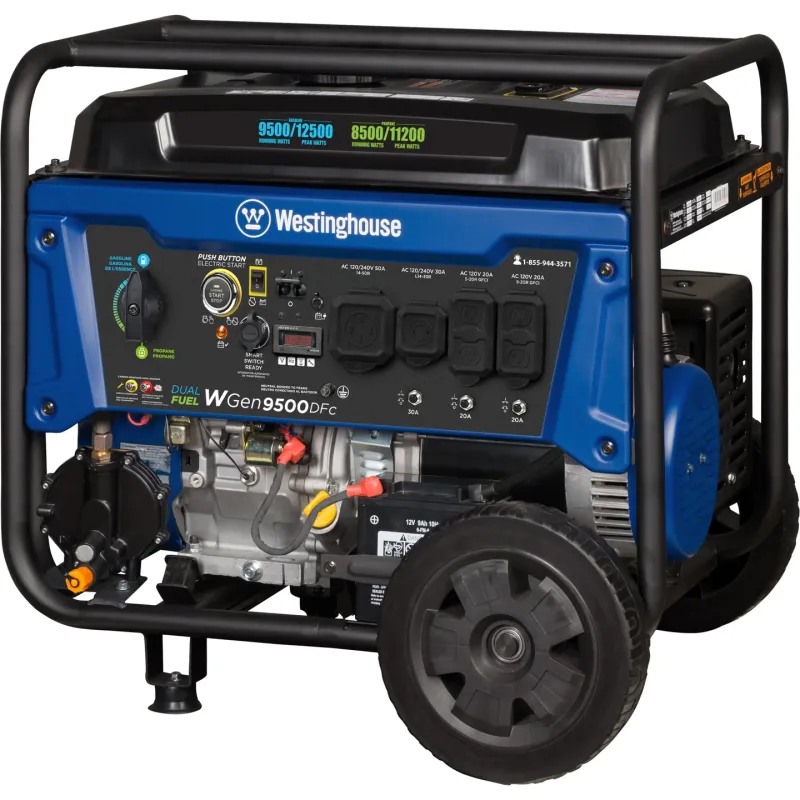

The Westinghouse WGen9500DFc Dual-Fuel Portable Generator delivers high-capacity emergency standby power engineered with an integrated Carbon Monoxide (CO) Sensor for advanced operational safety. Designed for heavy-duty household and jobsite backup, it features seamless multi-fuel execution on gasoline or liquid propane (LPG) to generate up to 12,500 peak watts and 9,500 running watts.
Powered by a robust 457cc OHV 4-stroke engine, this system operates at a managed 74 dBA noise level and includes a versatile triple starter mechanism (electric, remote, and recoil). It comes fully equipped with a digital readout display, automatic choke, comprehensive overload protection, and transfer switch ready infrastructure for optimized emergency power distribution.
Key Features
- Dual-Fuel Versatility (Gasoline & Liquid Propane Gas)
- Integrated Carbon Monoxide (CO) Sensor Safety Shutdown
- 12,500 Peak Watts & 9,500 Running Watts on Gasoline
- Dependable 457cc OHV 4-Stroke Engine with Automatic Choke

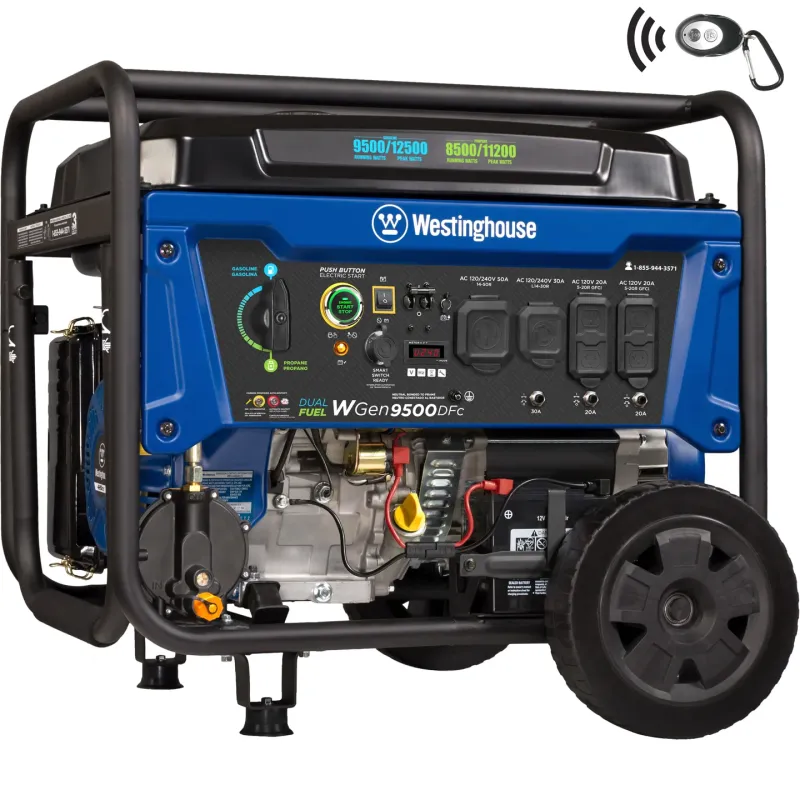

- Triple Starting System (Electric, Remote, and Recoil)
- Digital Readout Display for Real-Time Performance Tracking
- High-Capacity 6.6-Gallon Fuel Tank with Integrated Gauge
- Up to 12 Hours of Gasoline Run Time at 25% Operational Load
- Transfer Switch, ST Switch, and RV Ready Interface Layout
- Automatic Low Oil Shutdown & Comprehensive Overload Protection
- 3-Year Limited Residential Warranty
Specifications
| Brand | Westinghouse |
|---|---|
| Model Name | WGen9500DFc |
| UPC | 850011336663 |
| Fuel Type | Dual Fuel (Gasoline & LPG) |
| Gasoline Performance | 12,500 Peak Watts / 9,500 Running Watts |
| Propane Performance | 11,200 Peak Watts / 8,500 Running Watts |
| Gasoline Current (Amps) | Peak: 52A (240V), 104A (120V) / Running: 39.5A (240V), 79A (120V) |
| Propane Current (Amps) | Peak: 47A (240V), 93A (120V) / Running: 35A (240V), 71A (120V) |
| AC Voltage & Frequency | 120/240V @ 60 Hz |
| Outlets | (2) Duplex 120V 5-20R GFCI, (1) 120/240V L14-30R, (1) 120/240V 14-50R, ST Switch |
| Total Harmonic Distortion | ≤23% |
| Engine Specifications | 457cc OHV 4-Stroke Engine |
| Starter & Choke Type | Electric, Remote, Recoil (Automatic Choke) |
| Fuel Tank Infrastructure | 6.6 gal. (25 L) with Integrated Fuel Gauge |
| Gasoline Run Time | 12 hrs @ 25% Load / 8 hrs @ 50% Load |
| Propane Run Time | 7 hrs @ 50% Load |
| Oil Capacity & Type | 37.2 oz. (1.1 qt.) / 10W30 |
| System Safety Controls | Carbon Monoxide (CO) Sensor, Automatic Low Oil Shutdown, Overload Protection |
| Compliance Status | EPA Certified (CARB Compliant: No) |
| Noise Performance | 74 dBA |
| Product Dimensions | 27.2L x 26.1W x 26.5H in. |
| Dry Unit Weight | 212.1 lb. (95.7 kg) |
| Packaging Dimensions | 31L x 21.5W x 23H in. |
| Shipping Weight | 227.1 lb. (102.5 kg) |
| Warranty Structure | Residential: 3 Year Limited / Commercial: 1 Year Limited |
