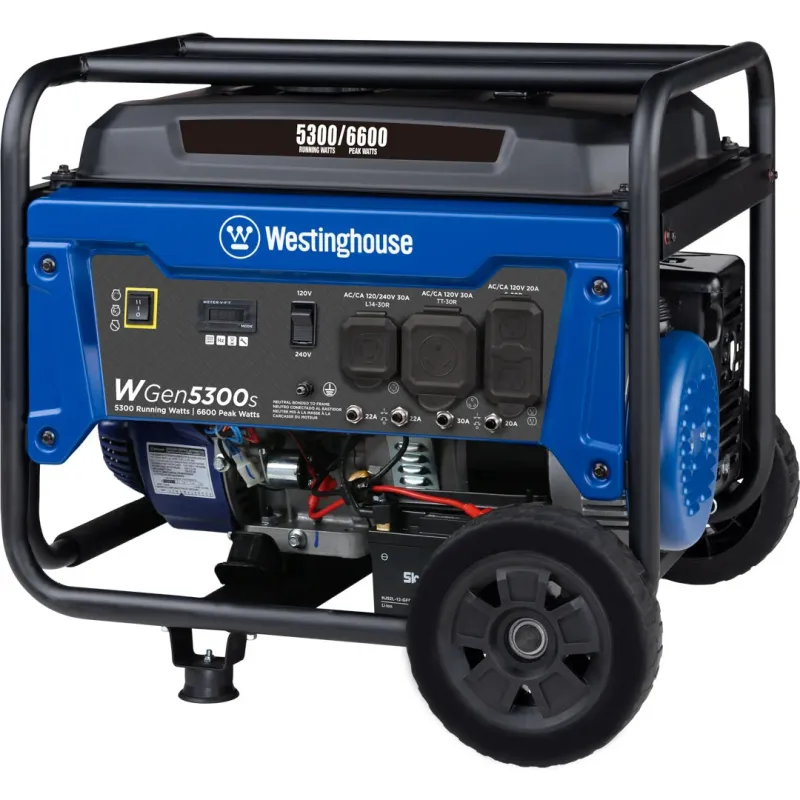

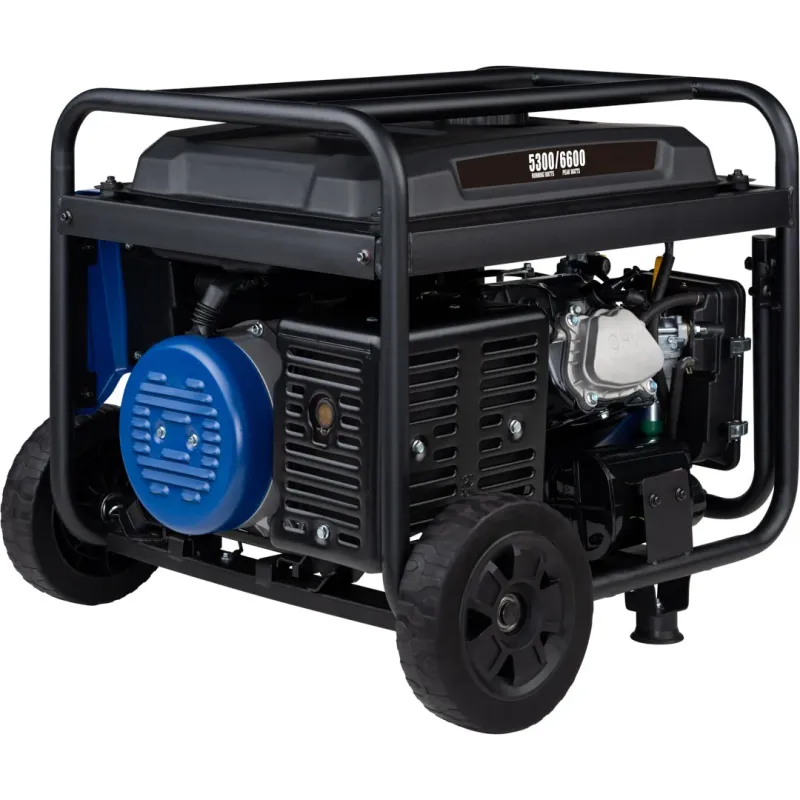

The Westinghouse WGen5300s Portable Generator is a versatile solution for all your power needs, from your home to your travel trailer, when youβre looking for a dependable backup power supply. Powered by a tough 274cc 4-Stroke OHV Westinghouse Engine constructed for durability, it produces up to 6,600 peak watts and 5,300 running watts on gasoline.
Running for up to 14.5 hours on a 4.7-gallon gas tank, it features a built-in fuel gauge, a reliable Electric Start with manual choke, and an emergency recoil backup. The intuitive control panel is transfer switch and RV ready, offering excellent flexibility with an integrated 120/240V selector switch, a Digital Readout for real-time maintenance updates, and complete automatic low oil and overload protection.
Key Features
- 6,600 Peak Watts & 5,300 Running Watts
- Tough 274cc 4-Stroke OHV Westinghouse Engine with Cast Iron Sleeve
- Electric Start for Easy Ignition backed by Emergency Recoil Start
- Runs for Up to 14.5 Hours on a 4.7-Gallon Fuel Tank with Built-In Fuel Gauge
- Transfer Switch Ready L14-30R Outlet & RV Ready TT-30R Receptacle
- 120V/240V Selector Switch for Flexible Power Draw Per Outlet
- Digital Readout for Real-Time Updates on Voltage, Frequency, and Lifetime Hours
- Protective Rubber Covers on All Outlets
- Automatic Low Oil Shutdown, Voltage Regulation, and Overload Protection
- Compact Hardened Steel Frame with Foam Grip Handle and Rugged Never-Flat Wheels
- 3-Year Limited Residential Warranty & Lifetime Technical Support
Specifications
| Brand | Westinghouse |
|---|---|
| Model Name | WGen5300s |
| UPC | 850011336816 |
| Fuel Type | Gasoline Only |
| Gasoline Performance | 6,600 Peak Watts / 5,300 Running Watts |
| Gasoline Current (Amps) | Peak: 27.5A (240V), 55A (120V) / Running: 22A (240V), 44A (120V) |
| AC Voltage & Frequency | 120/240V @ 60 Hz |
| Outlets | (1) Duplex 120V 5-20R, (1) 120/240V L14-30R, (1) 120V TT-30R |
| Total Harmonic Distortion | β€23% |
| Engine Specifications | 274cc OHV 4-Stroke Engine |
| Starter & Choke Type | Electric, Recoil (Manual Choke) |
| Display Type | Digital Readout |
| Fuel Tank Infrastructure | 4.7 gal. (18 L) with Integrated Fuel Gauge |
| Gasoline Run Time | 14.5 hrs @ 25% Load / 11 hrs @ 50% Load |
| Oil Capacity & Type | 20.3 oz. (0.6 qt.) / 10W30 |
| System Safety Controls | Automatic Low Oil Shutdown, Overload Protection (Carbon Monoxide Sensor: No) |
| Grounding System | Bonded Neutral |
| Compliance Status | EPA Certified (CARB Compliant: No) |
| Noise Performance | 68 dBA |
| Product Dimensions | 23.23L x 20.08W x 19.09H in. |
| Dry Unit Weight | 131.4 lb. (60.4 kg) |
| Packaging Dimensions | 26.7L x 21.6W x 20.3H in. |
| Included Accessories | Oil Bottle, Oil Funnel, Spark Plug Wrench |
