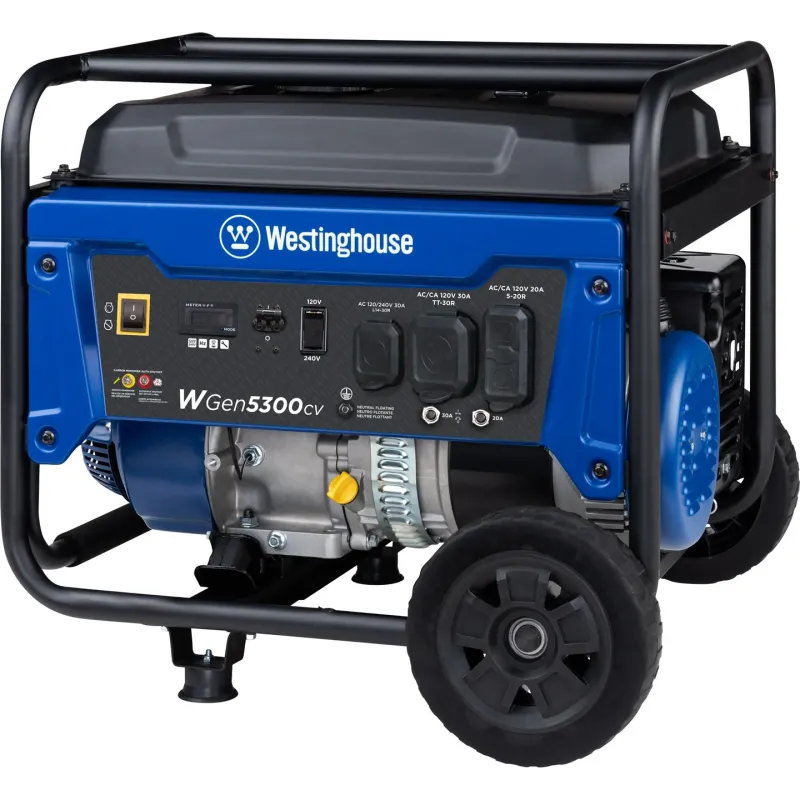

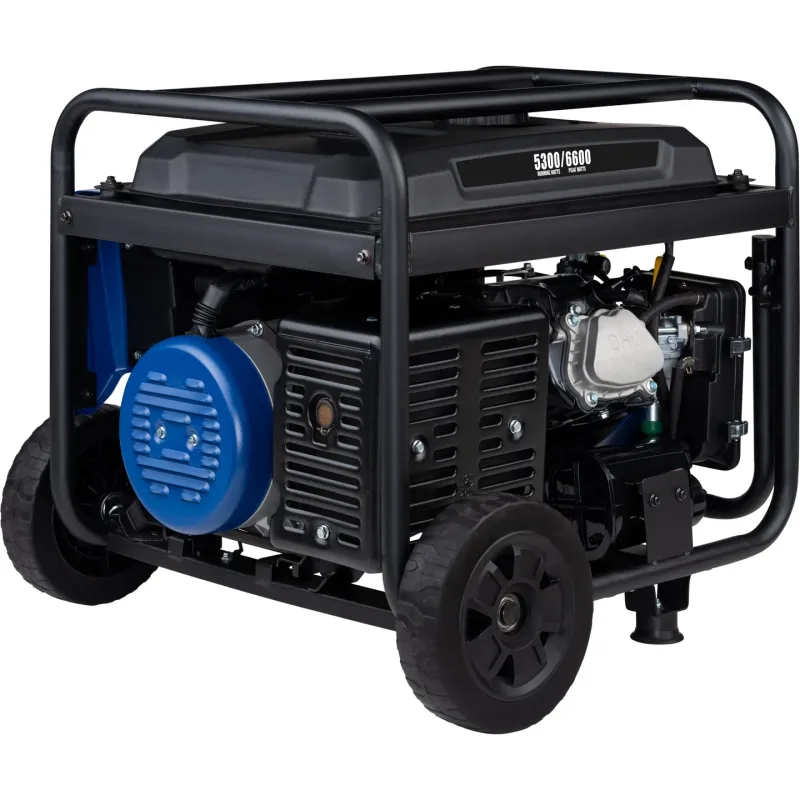

The Westinghouse WGen5300cv Portable Generator with CO Sensor is a convenient generator to keep you powered on the road or at your home during a power outage. Powered by a robust 274cc 4-Stroke OHV Westinghouse Engine constructed with a durable cast iron sleeve, it delivers up to 6,600 peak watts and 5,300 running watts on gasoline.
Running for up to 14.5 hours on a 4.7-gallon fuel tank, it features a built-in fuel gauge, a reliable recoil starter with manual choke, and a Digital Readout display for real-time tracking of voltage, frequency, and maintenance data. This transfer switch and RV ready generator offers maximum adaptability through an integrated 120/240 Volt Selector Switch alongside advanced safety controls including automatic low oil and Carbon Monoxide (CO) sensor shutdown.
Key Features
- 6,600 Peak Watts & 5,300 Running Watts
- Integrated Carbon Monoxide (CO) Sensor Safety Shutdown
- Tough 274cc 4-Stroke OHV Westinghouse Engine with Cast Iron Sleeve
- Dependable Recoil Starting System with Manual Choke
- Runs for Up to 14.5 Hours on a 4.7-Gallon Fuel Tank with Built-In Fuel Gauge
- Transfer Switch Ready L14-30R Outlet & RV Ready TT-30R Receptacle
- 120/240 Volt Selector Switch for More Flexible Power Draw Per Outlet
- Digital Readout for Real-Time Updates on Voltage, Frequency, and Lifetime Hours
- Protective Rubber Covers on All Outlets
- Automatic Low Oil Shutdown, Voltage Regulation, and Overload Protection
- Compact Hardened Steel Frame with Foam Grip Handle and Rugged Never-Flat Wheels
- 3-Year Limited Residential Warranty & Lifetime Technical Support
Specifications
| Brand | Westinghouse |
|---|---|
| Model Name | WGen5300cv |
| UPC | 850011336700 |
| Fuel Type | Gasoline Only |
| Gasoline Performance | 6,600 Peak Watts / 5,300 Running Watts |
| Gasoline Current (Amps) | Peak: 27.5A (240V), 55A (120V) / Running: 22A (240V), 44A (120V) |
| AC Voltage & Frequency | 120/240V @ 60 Hz |
| Outlets | (1) Duplex 120V 5-20R, (1) 120/240V L14-30R, (1) 120V TT-30R |
| Total Harmonic Distortion | ≤23% |
| Engine Specifications | 274cc OHV 4-Stroke Engine |
| Starter & Choke Type | Recoil (Manual Choke) |
| Display Type | Digital Readout |
| Fuel Tank Infrastructure | 4.7 gal. (18 L) with Integrated Fuel Gauge |
| Gasoline Run Time | 14.5 hrs @ 25% Load / 11 hrs @ 50% Load |
| Oil Capacity & Type | 20.3 oz. (0.6 qt.) / 10W30 |
| System Safety Controls | Carbon Monoxide (CO) Sensor, Automatic Low Oil Shutdown, Overload Protection |
| Grounding System | Floating Neutral |
| Battery Included | No |
| Compliance Status | EPA Certified (CARB Compliant: No) |
| Noise Performance | 68 dBA |
| Product Dimensions | 23.23L x 20.08W x 19.09H in. |
| Dry Unit Weight | 133.6 lb. (60.1 kg) |
| Packaging Dimensions | 26.7L x 21.6W x 20.3H in. |
| Included Accessories | Oil Bottle, Oil Funnel, Spark Plug Wrench |
