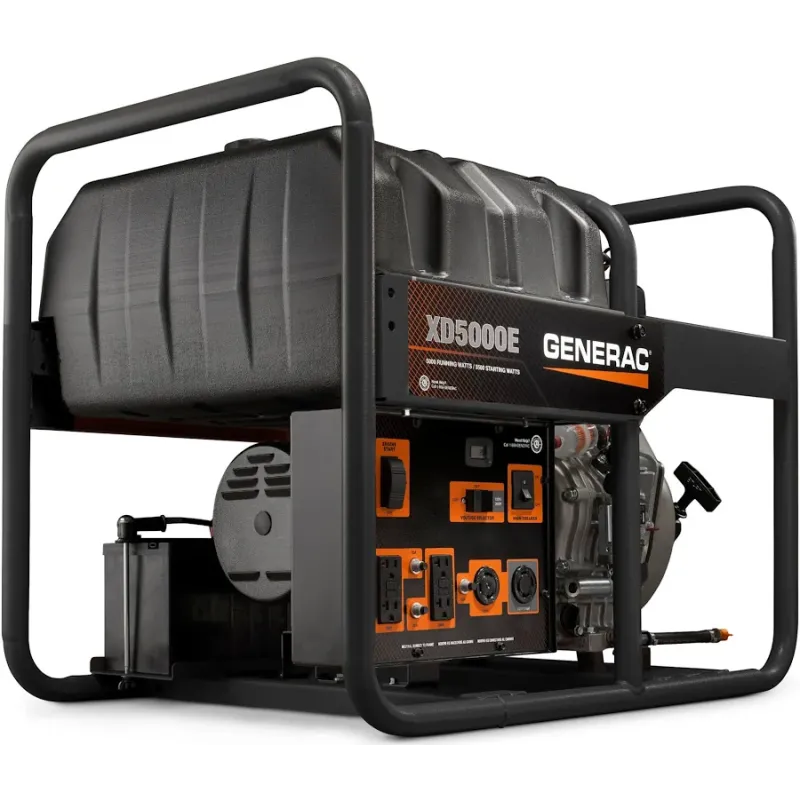

The Generac XD5000E Diesel Portable Generator is designed to provide dependable, long-lasting portable power for demanding applications. Powered by a 435cc Yanmar industrial-grade diesel engine, the XD5000E delivers 5,000 rated watts and 5,500 surge watts with 120/240-volt output.
An electric start makes starting the generator convenient, while the idle control system helps conserve fuel during periods of lower power demand. Generac's TruePower Technology provides electrical output with less than 6% THD, making the generator suitable for powering sensitive electronics.
The XD5000E features a 12-gallon fuel tank and can operate for up to an impressive 32.4 hours at 50% load. Its air-cooled Yanmar engine, low-oil protection, hour meter, and fuel gauge provide practical features for extended operation and monitoring.
The generator is EPA and CARB compliant for sale in all 50 states. Please note that the supplied product information contains a discrepancy regarding the wheel kit: the product highlights state that the wheel kit is not included, while the specifications list the portability kit as included. Verify the actual package contents before publishing this information.
Key Features
- 5,000 Rated Watts and 5,500 surge watts
- Diesel Powered for dependable long-duration operation
- Yanmar 435cc Industrial-Grade Engine
- Electric Start for convenient operation
- TruePower Technology with less than 6% THD
- Idle Control to help conserve fuel
- 12-Gallon Fuel Tank
- Up to 32.4 Hours of Runtime at 50% load
- 120/240V Output
- Low-Oil Protection
- Fuel Gauge and hour meter
- EPA & CARB Compliant - For sale in all 50 states
- Portable Generator Design
- Generac 2-Year Limited Warranty
Specifications
| Model Number | 6864 |
|---|---|
| Manufacturer | Generac Power Systems |
| Made in USA | Yes |
| Rated Watts | 5,000 Watts |
| Surge Watts | 5,500 Watts |
| Rated Amps | 20.8 Amps |
| Surge Amps | 22.9 Amps |
| Voltage | 120/240 Volts |
| Type | Portable Generator |
| Starting System | Electric Start |
| Low Oil Alert | Yes |
| Idle Control | Yes |
| Fuel Gauge | Yes |
| Hour Meter | Yes |
| Portability Kit | Included* |
| Weight | 247 lbs |
| Dimensions | 33.4 L x 22.5 W x 25.6 H Inches |
| Consumer Warranty | 2-Year Limited Warranty |
| Commercial Warranty | 2-Year Limited Warranty |
| Engine Brand | Yanmar |
| Engine Size | 435cc |
| Engine RPM | 3,600 RPM |
| Cooling System | Air Cooled |
| Frequency | 60 Hz |
| Automatic Voltage Regulation | Yes |
| Fuel Type | Diesel |
| Fuel Tank Size | 12 Gallons |
| Runtime at 50% Load | 32.4 Hours |
*The supplied information contains conflicting details regarding the portability/wheel kit. The product highlights state that the wheel kit is not included, while the specifications list the portability kit as included. Confirm package contents before publishing.
- Brand: Generac
- Product Code: 6864
- Availability: In Stock
