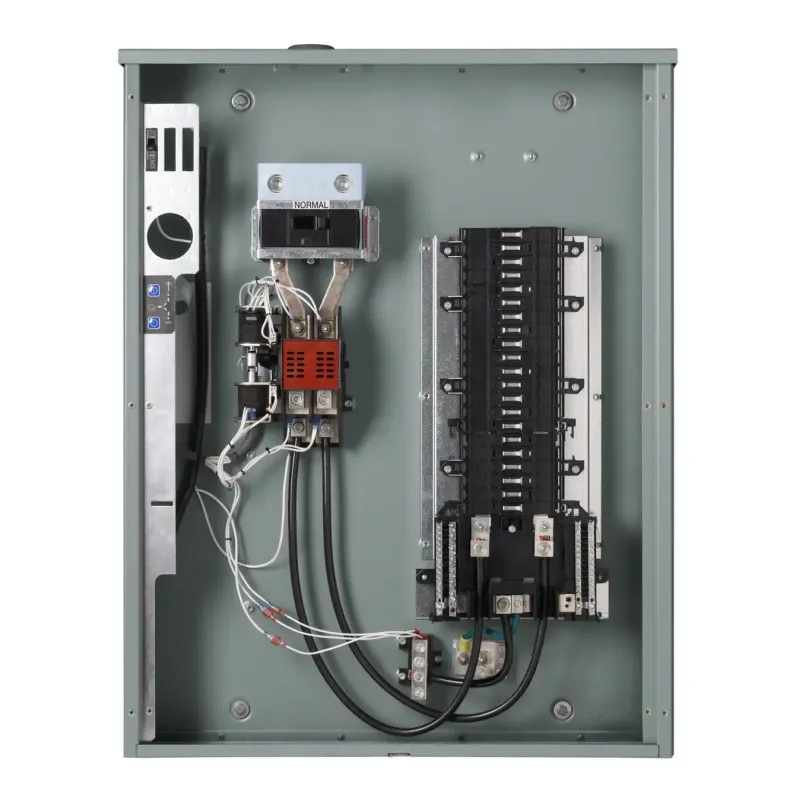

The Kohler RDT CFNC BSEQS3 200 Amp Service Entrance Automatic Transfer Switch 42 Space Load Center provides high-capacity, heavy-duty emergency power control and distribution for large residential and light commercial applications. This advanced backup system continuously monitors incoming utility grid conditions 24/7 to automatically initiate generator startup and shift critical electrical loads the moment utility power fails.
Engineered as a highly efficient 2-Pole 3-Wire Switch for 240V Single Phase Systems, this automatic transfer switch features an integrated 42 space power distribution branch panel. It functions as a dedicated main utility disconnect directly at the service entrance setup, making it ideal for adding a backup generator to buildings with previously installed electrical infrastructure. Driven by the advanced MPAC 500 Controller, the system supports built-in load control time delays and optional load shedding capabilities to safely manage and prioritize electricity routing.
Built for exceptional field longevity and superior environmental protection, the internal mechanical relays and controller boards are safely housed inside a rugged, corrosion-resistant aluminum enclosure rated for flexible indoor or outdoor installation. Featuring a user-friendly front panel with position and source available indicating LEDs, this premium US-built switch provides quiet weekly exercise cycles with complete diagnostics, backed by an extensive 5-year, 2000-hour limited warranty.
Key Features
- Compatible with all KOHLER generators
- 200-amp models available, with or without load centers; Volts: 240; Poles: 2
- User-friendly LED display indicates performance status
- Ideal for adding generator to buildings with previously installed electrical
- Options available to install indoors or outdoors
- Available in service entrance models
- Provides quiet weekly exercise with complete system diagnostics
- Steel or aluminum enclosures available
- Ask your dealer about available accessories that let you customize your system
- 5-year, 2000-hour limited warranty
Specifications
| Brand | Kohler |
|---|---|
| Series Name | RDT Series |
| Model Number | RDT-CFNC-200BSEQS3 |
| Transfer Switch Model | RDT-CFNC-200BSEQS3 |
| Product Type | Automatic Transfer Switch with Load Center |
| Transfer Switch Type | Service Entrance Rated |
| Transfer Switch Amps | 200 Amps |
| Voltage | 240 V Single Phase |
| Phase | Single Phase |
| Wires | 3 Wires |
| ATS Poles | 2 Poles |
| Load Center Capacity | 42 Space Load Center Panel |
| Generator Compatibility | All Single Phase KOHLER Residential / Small Business Generators |
| Load Shedding | Optional |
| Load Control Time Delay | Yes |
| Enclosure Material | Aluminum |
| Enclosure Type | Indoor or Outdoor (NEMA 3R Rated) |
| Controller | MPAC 500 |
| Position Indicating LEDs | Yes |
| Source Indicating LEDs | Yes |
| Common Fault Relay | Yes |
| Dimensions | 967 mm x 762 mm x 165 mm (38.1 x 30.0 x 6.5 Inches) |
| Product Weight | 70 lbs. (32 kg) |
| Country of Origin | United States |
| Warranty | 5-year limited (2000-hour) |
- Brand: Kohler
- Product Code: RDT-CFNC-200BSEQS3
- Availability: In Stock
