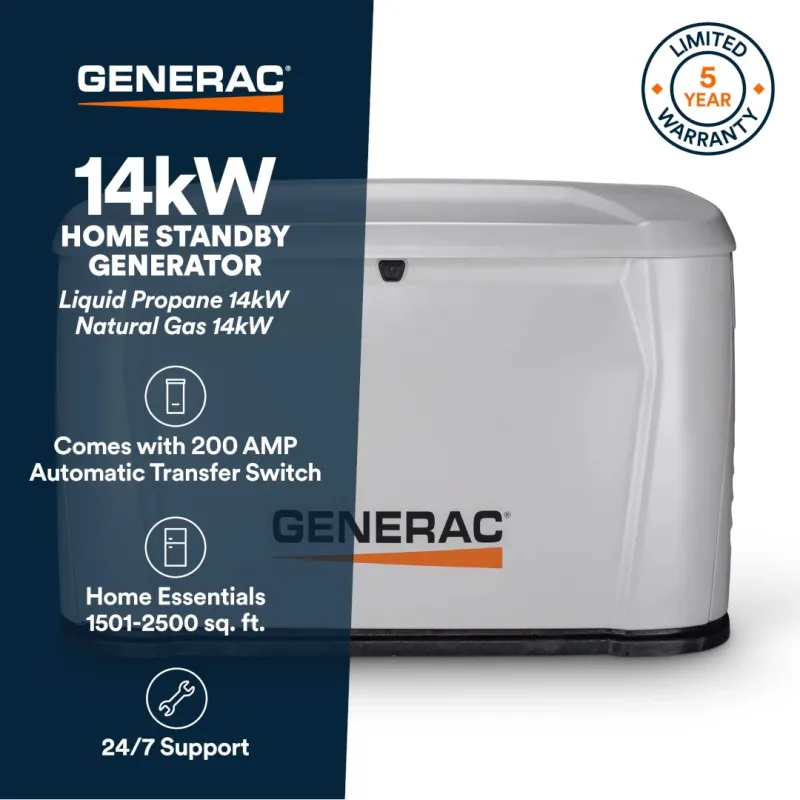

The Generac 14kW Next Gen Home Standby Generator (Model 7323) provides reliable automatic backup power for residential applications, delivering 14kW on liquid propane and 14kW on natural gas.

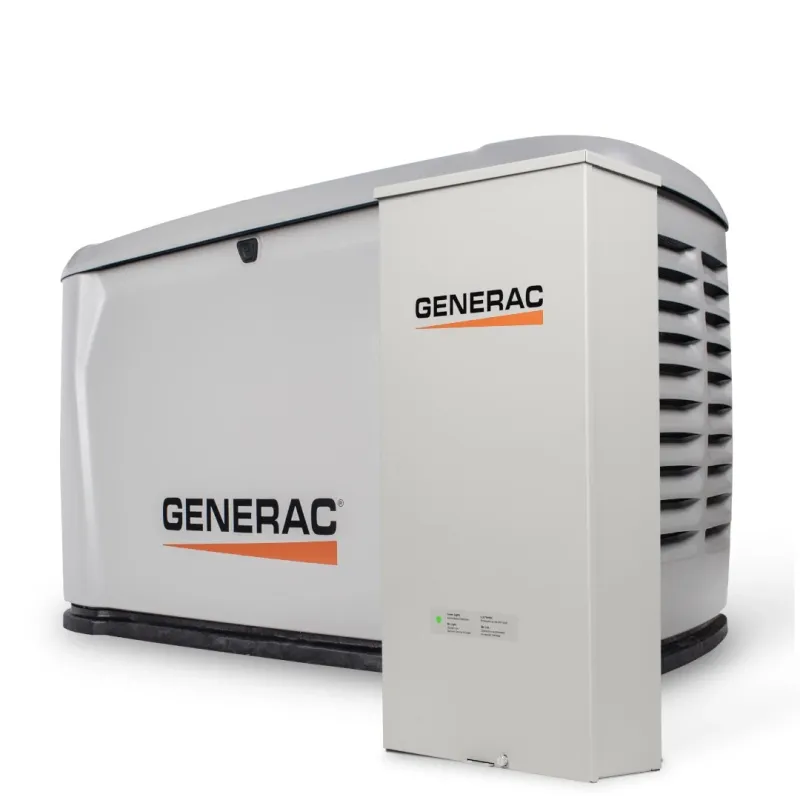

The system includes a 200-Amp Automatic Transfer Switch with integrated surge protection and a Power Zone 200 Controller for advanced generator control, monitoring, electronic oil sensing, and gas pressure monitoring.
The Generac 7323 features built-in cellular connectivity, Electronic Fuel and Ignition Control, Smart Exercise functionality, maintenance-free hydraulic lifters, and less than 5% total harmonic distortion. The aluminum enclosure is designed for outdoor residential standby applications and provides enhanced protection against weather conditions.
Key Features
- 14kW Standby Power (Liquid Propane & Natural Gas)
- 200-Amp Automatic Transfer Switch
- Integrated Surge Protection
- Power Zone 200 Controller
- Built-In Cellular Connectivity
- Electronic Fuel & Ignition Control
- Smart Exercise Functionality
- Exercise with Transfer of Power
- Maintenance-Free Hydraulic Lifters
- Generac G-Force 800 Series Engine
- PWRcell & ecobee Integration
- Aluminum Enclosure with 150 mph Wind Rating
- Recessed External Emergency Shutdown
- 5-Year Limited Warranty
Specifications
| Brand | Generac |
|---|---|
| Series | Next Gen |
| Model | 7323 |
| Product Type | Home Standby Generator |
| Rated Power - LP | 14 kW |
| Rated Power - Natural Gas | 14 kW |
| Rated Current - LP | 58 A |
| Rated Current - Natural Gas | 58 A |
| Voltage | 120/240 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Engine | Generac G-Force 800 Series |
| Engine Displacement | 817 cc |
| Engine Configuration | V-Twin |
| Engine Speed | 3,600 RPM |
| Cooling System | Air Cooled |
| Fuel Type | Natural Gas or Liquid Propane |
| Controller | Power Zone 200 |
| Alternator | 2-Pole Revolving Field |
| Automatic Voltage Regulation | Yes |
| Total Harmonic Distortion | Less than 5% |
| Sound Level - Normal Load | 65 dBA |
| Sound Level - Quiet-Test Mode | 55 dBA |
| Starting System | Automatic |
| Enclosure | Aluminum |
| Enclosure Color | Metro Gray |
| Connectivity | Built-In Cellular |
| Mobile Monitoring | Mobile Link |
| Oil Monitoring | Electronic Oil Sensing |
| Smart Exercise | Yes |
| Exercise with Transfer of Power | Yes |
| Fuel & Ignition Control | Electronic Fuel & Ignition Control |
| PWRcell Compatibility | Yes |
| ecobee Compatibility | Yes |
| Wind Rating | Up to 150 mph |
| NG Consumption @ 50% Load | 189 ft³/hr |
| NG Consumption @ 100% Load | 243 ft³/hr |
| LP Consumption @ 50% Load | 1.76 gal/hr |
| LP Consumption @ 100% Load | 2.92 gal/hr |
| Dimensions | 46.4 W × 26.3 D × 30.7 H in |
| Weight | 391 lb |
| Warranty | 5-Year Limited Warranty |
Transfer Switch
| Transfer Switch Rating | 200 A |
|---|---|
| Transfer Switch Type | Automatic Transfer Switch |
| Service Entrance Rated | Yes |
| Application | Whole Home |
| Voltage | 120/240 VAC |
| Phase | Single Phase |
| Surge Protection | Integrated Surge Protection |
| Enclosure | NEMA 3R |
- Brand: Generac
- Product Code: 7323
- Availability: In Stock
